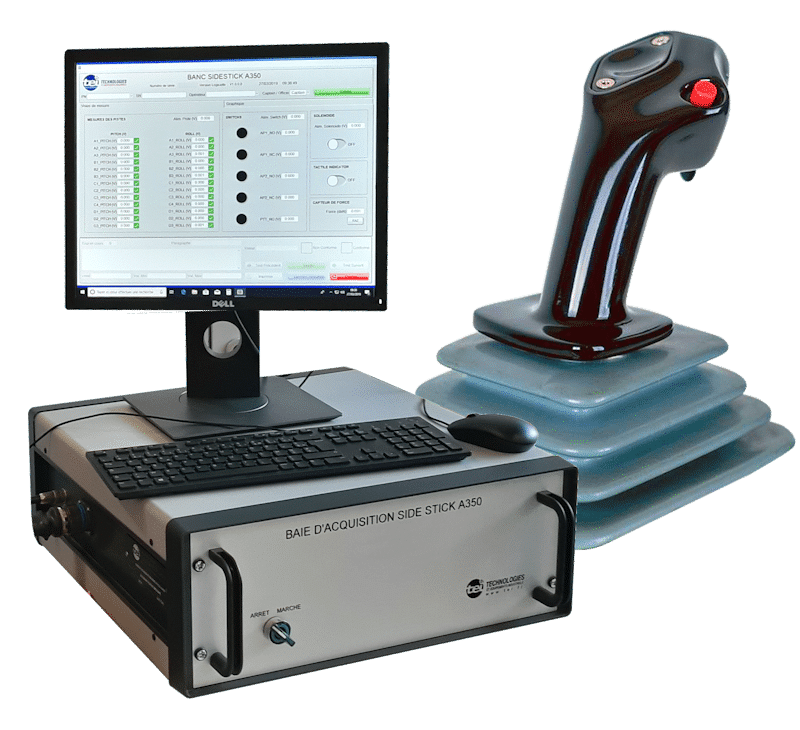

A320/350 Sidestick Test bench
This bench is dedicated to MRO workshop to carry out measurements (angle, force, voltage) required by CMM
- Acquisition and plotting software with automatic test report generation
- Plotting of angle/force and angle/time curves with configurable gauge mask
This bench is dedicated to MRO workshop to carry out measurements (angle, force, voltage) required by CMM. It Is qualified for Airbus A320's and A350's Sidesticks
Pictures of the product
Model
Documents to download
Document's type
Technical specifications
Product category
Cabin Equipment
Applications
MRO - Maintenance Repair and Overhaul
Features
Plotting of angle/force and angle/time curves with configurable gauge mask
Acquisition and plotting software with automatic test report generation
Technical Specifications
Test of blocking function (pulling solenoid) and tactile Indicator
Test of commands (PTT, AP) with feedback signal
Measurement of potentiometers signals (up to 26) simultaneously: -10V / +10V DC
User-friendly PC application with: display of all measurements, sequence of CMM's tests, curve plotting with gauge mask, results save,test report gene
Force measurement for equipment's dynamic characterization
Keywords
CMM 27-92-41 / 27-92-81
Side stick test bench
