Our solutions for cyclic pressure testing

In many business activities, pressure cycling tests are a prerequisite to qualify the endurance and lifetime of a product before its placing on the market.

banc de cyclage sous pression

Our solutions for this type of applications allow us to offer our customers :

  • The realization of pneumatic pressure/vacuum tests (air, nitrogen) or hydraulic tests (water, oil)
  • Test pressures up to 250bar (beyond that: consult us)
  • An automatic cyclic pressure generation controlled by PC (or PLC) with test parameters (min/max pressure, frequency, profile)
  • Different cycling profiles: triangle, ridge, crest, niche, trapezoid, sine or custom profile
  • Possibility of tests in climatic chambers
  • High frequency applications (up to 10Hz) for testing rigid parts at low pressure
  • Expansion compensation (2L and more) for testing of deformable parts

Our flagship product

Pressure Cycling test Bench V3

The BPCV3 Cycling Pressure Test Bench is used to carry out pressure and vacuum pneumatic cycling tests on aerospace or automotive equipment. It is used in production or research and development to qualify equipments in fatigue up to bursting.

This bench is equipped with a software-controlled automatic cyclic pressure generation system with parameterization of cycle profiles (triangle, trapezoid, peak), minimum and maximum pressures and frequency.

OTHER PRODUCTS RELATED TO THIS SOLUTION

B037

Cyclic pressure test Bench
The cyclic pressure test bench is designed forTest Departments wishing to qualify endurance parts for water distribution networks
See more

B050

10Hz Cyclic pressure test bench
The 10Hz Cyclic Pressure Test Bench is designed for laboratories and Test Departments In order to perform an extended endurance test (up to 10 million cycles) with cyclic pressure at high frequency on several pieces of equipment (housings, valves,piping, etc
See more

B007

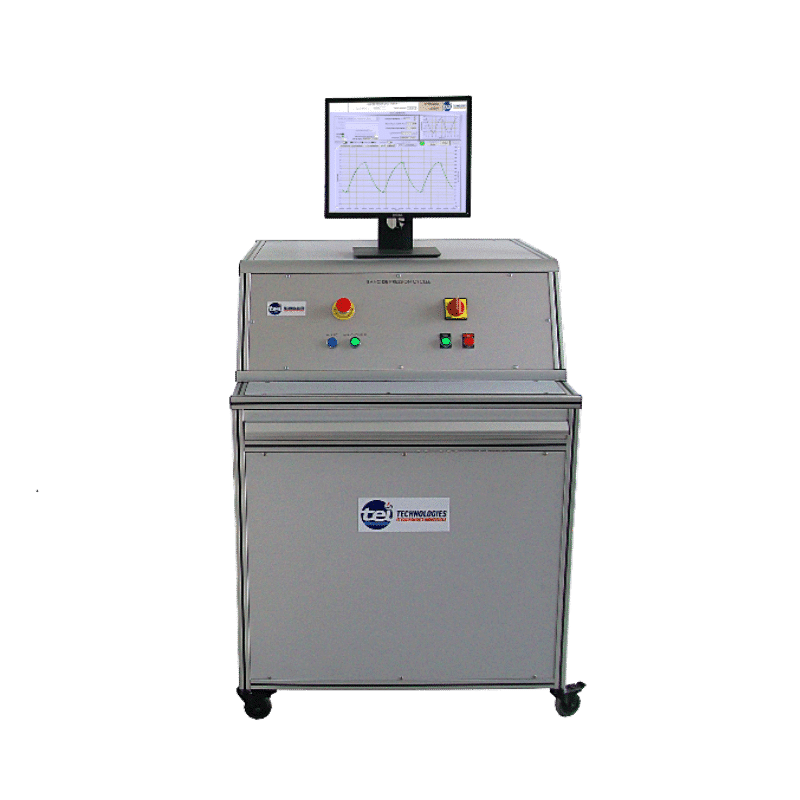

Pressure cycling test Bench
Pressure cycling test bench is designed to carry out pneumatic pressure cycling test with pression and vacuum on aircraft and automotive items
See more

B037

Cyclic pressure test Bench
The cyclic pressure test bench is designed forTest Departments wishing to qualify endurance parts for water distribution networks
See more

B050

10Hz Cyclic pressure test bench
The 10Hz Cyclic Pressure Test Bench is designed for laboratories and Test Departments In order to perform an extended endurance test (up to 10 million cycles) with cyclic pressure at high frequency on several pieces of equipment (housings, valves,piping, etc
See more

B007

Pressure cycling test Bench
Pressure cycling test bench is designed to carry out pneumatic pressure cycling test with pression and vacuum on aircraft and automotive items
See more
