B045

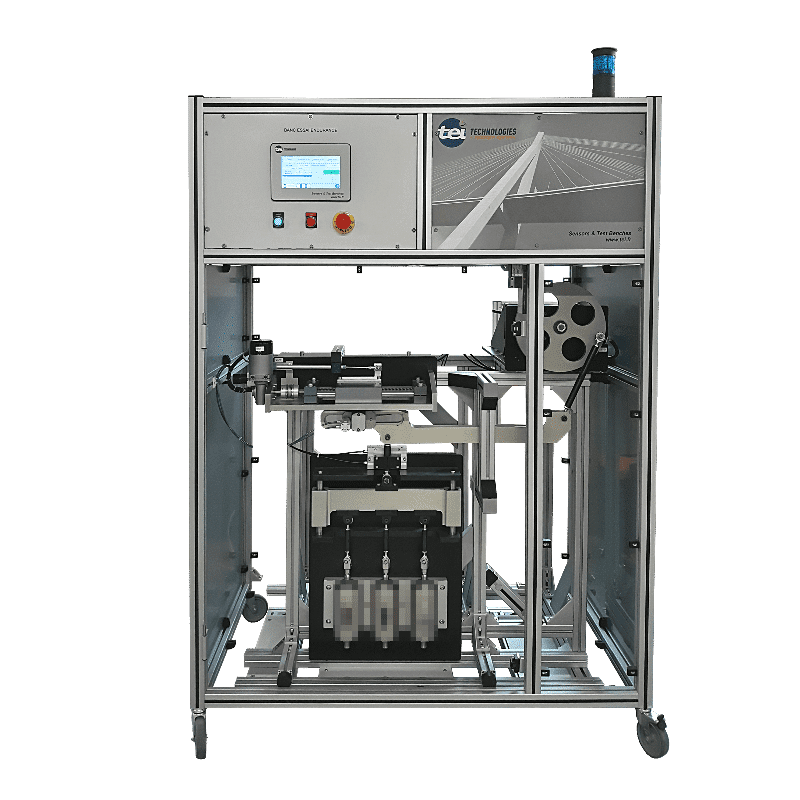

Mechanical Endurance Test Bench

This mechanical cycling test bench is designed for testing laboratories wishing to perform mechanical endurance tests on rod/cylinder assemblies
  • Test frequency up to 10Hz
  • Cyclic displacement with automatic stroke adjustment up to ±20mm
This mechanical cycling test bench is designed for testing laboratories wishing to perform mechanical endurance tests on rod/cylinder assemblies. It allows the equipment under test to be ubjected to several sequences of cyclic displacements, with variable frequencies and strokes

Video of the product

Pictures of the product

Model

Documents to download
Document's type
Datasheet - Mechanical Endurance Bench - B045.pdf
305.78 Ko
Technical specifications
Product category
Cycling
Applications
R&D Test
Features
Cyclic displacement with automatic stroke adjustment up to ±20mm
Test frequency up to 10Hz
Technical Specifications
Stroke: from ±0.2 to ±20mm
Integrated servo-motor ensuring cycling stability under different test conditions
Electric supply: 230V 50Hz mono
Automatic stroke adjustment - without operator intervention
Pneumatic supply: compressed air – 7 bar
Control via PLC and touch interface, with programmable test sequences including different phases (duration, stroke, frequency)
Maximum dynamic effort (resistant): 600 N (beyond: contact us)
Cycling frequency: 0.01Hz to 10 Hz
Keywords
Mechanical endurance test bench
Mechanical cycling bench
