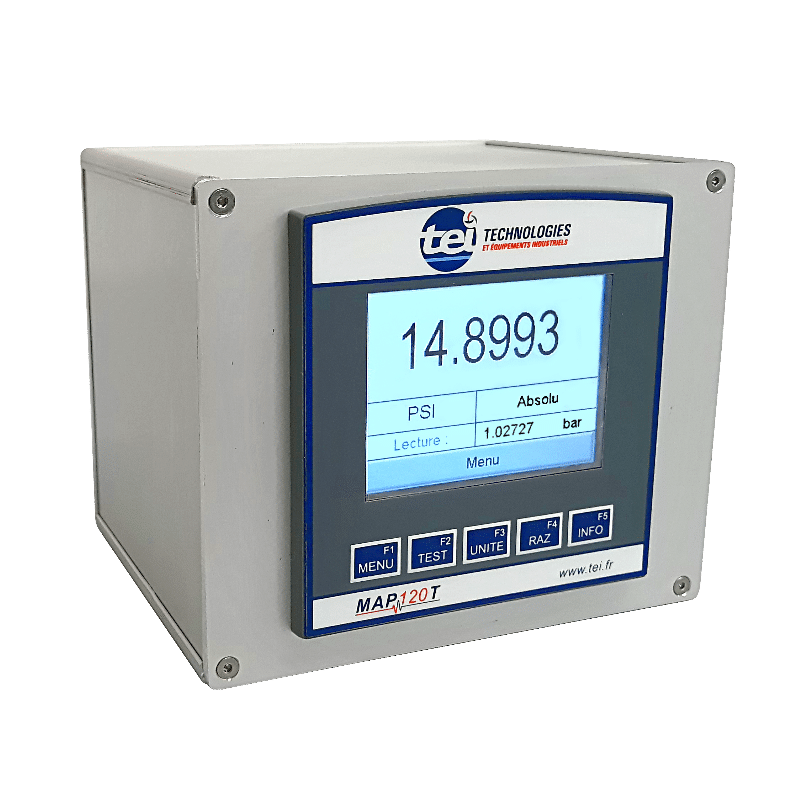

B062
Digital high-precision pressure device

The Standard Pressure Indicator is designed for Laboratories and Test Services wishing to be equipped with a compact and transportable high-precision pressure measurement system
  • Very compact and easily transportable
  • Intelligent touch display with integrated unit conversion
  • High precision digital pressure measurement (0.01% EM IS-50)
The Standard Pressure Indicator is designed for Laboratories and Test Services wishing to be equipped with a compact and transportable high-precision pressure measurement system.

Solutions:

See all our solutions

Pictures of the product

Model

Documents to download
Document's type
Datasheet - Digital high-precision pressure device - B062.pdf
207.42 Ko
Technical specifications
Product category
Pressure Calibration Stand
Applications
Calibration
R&D Test
Features
Very compact and easily transportable
High precision digital pressure measurement (0.01% EM IS-50)
Intelligent touch display with integrated unit conversion
Technical Specifications
Pressure range min/max: -1 … +20 barG / 0 … 21 barA (beyond: consult us)
Fluids: Air, Nitrogen and compatible fluids (Aluminium, Stainless Steel, Brass, Buna-N, Viton, Silicone grease)
Power supply: 90 / 264 VAC - 50/60Hz - connection on IEC socket with switch
Pressure Port Connection : Snap-on tube fitting Ø6mm OD
Environment: Storage temperature: -20 ... +60°C; Operating temperature: 0 ... +45°C; RH: 20 ... 90%.
Available units: bar, mbar , PSI, mmHg, Pa, kPa (others on request)
Protection class: IP 40
Measurement accuracy: 0.01% EM IS-50 * for 365 days
Dimensions (H x W x D) and Weight: 5.118 x 5.905 x 5.433 inch ; 3.7lb
Keywords
Digital high-precision pressure device
