T.E.I
BC310
Torque Wrench Controller
The BC310-VA (Workshop version) is dedicated to control and adjustment of manually operated torque wrenches and dynamometric screwdrivers used in workshop for tightening operations with imposed torque
- Interchangeable digital sensors
- Automatic printing of control label
- Accuracy: ±1% of reading
- Standard range : 0.2 to 500Nm
- Ideal for workshops
- Smart integrated HMI with numerous functions

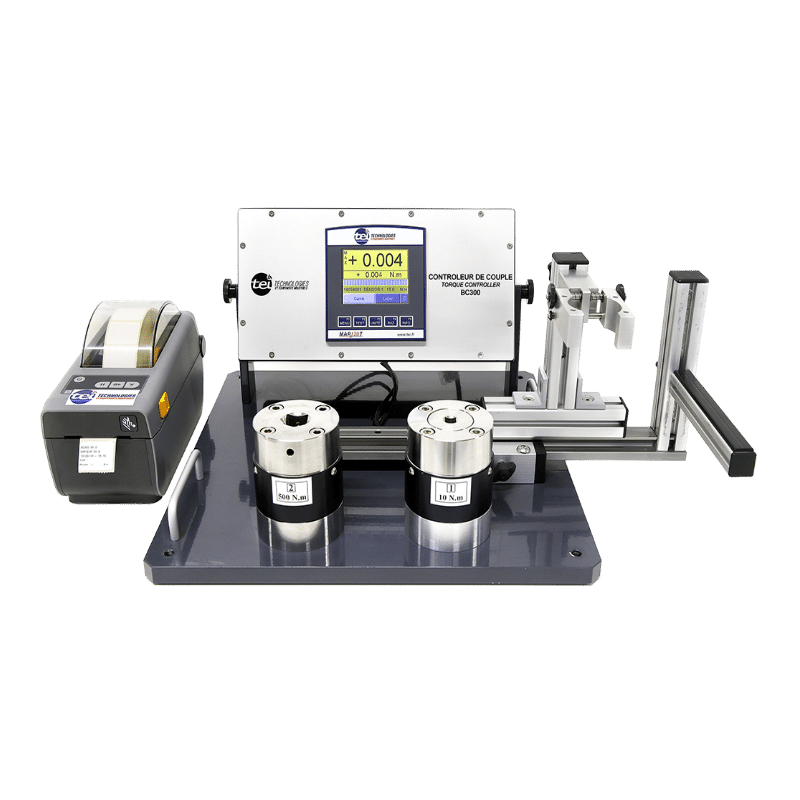

The BC310-VA (Workshop version) is dedicated to control and adjustment of manually operated torque wrenches and dynamometric screwdrivers used in workshop for tightening operations with imposed torque. Equipped in standard version with 2 interchangeable digital torque sensors, a detector reader, it displays the applied torque value and memorizes, either the maximum torque value or the first peak corresponding to the release of the tested equipment. Easy-to-use, the BC310-VA is equipped with an adjustable crank key holder and automatic detection of the sensor used. At the end of the test, the operator can print an adhesive label on which the value of the release torque, the date of the test and the serial number of the key used are indicated.The CANbus sensors of the BC310 are automatically recognized by the controller (plug and play function), the calibration data being stored in the sensors. Maintenance in case of calibration or replacement is considerably easier.
Solutions:
Video of the product
Pictures of the product
Model
Documents to download
Document's type
Technical specifications
Product category
Torque wrench Controller
Applications
Calibration
Features
Interchangeable digital sensors
Smart integrated HMI with numerous functions
Ideal for workshops
Standard range : 0.2 to 500Nm
Accuracy: ±1% of reading
Automatic printing of control label
Technical Specifications
Option : torque screwdriver holder
Accuracy: +/-1% of reading
Option: Increasing mechanical adapters (1/4‘, 3/8’, 1/2" squares)
Accessory : key holder
Option : Adjustable torque wrench holder up to 500Nm
COFRAC-traceable Calibration certificat (recommended calibration frequency: annual)
Standard control range: 0.2 to 500Nm
Accessory : stowage box
Display integrated functions : memorization of the triggering peak, plotting of the torquing curve, unit conversion, automatic detection of torque sen
Option : MODBUS TCP format Communication port
Option: printer label for traceability of each control with printing of date, trigger torque value and identification of controlled wrench
Keywords
Torque Wrench Controller
Complies with standard EN ISO 26789
Torque control
