MICRO200
Universal Display

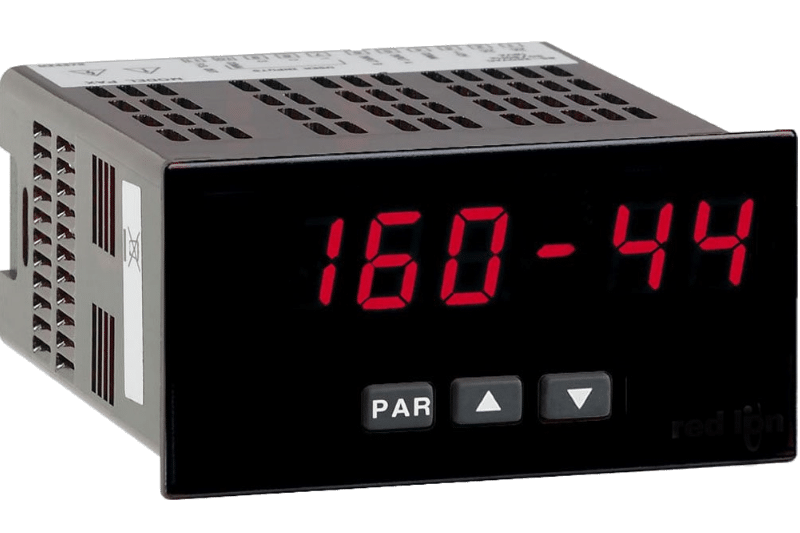

The MICRO200 represents a complete family of panel displays
  • Digital display
  • High accuracy
  • Strain gages input
  • Process & Temperature Inputs
The MICRO200 represents a complete family of panel displays. Available models cover both analogue process inputs (typically 0-10V or 4-20mA), strain gauges (low level mV/V sensors) and thermocouple/RTD inputs. The MICRO200 has a very compact case, a five or six digit red readable display and an IP65 protection rating, making it suitable for various applications such as test benches, mobile equipments, etc. The MICRO200 allows the installation of up to three optional cards to provide analogue outputs (0-10V, 4-20mA) or digital outputs such as Modbus, RS-232, RS-485, DeviceNet or Profibus. Two or four relay cards are also available. The MICRO200 is available with 250V power supply as standard and 11 to 36Vdc / 24Vac as an option.

Model

Model
Input signal
Sensor's power supply
PDF
MICRO201
2 ranges : ±24mV or ±240mV
5 Vdc with 65mA max, ±2% or 10Vdc with 125mA ±2%
MICRO202
20mA (-2 to +26mA) and 10Vdc (-1 to +13Vdc)
24Vdc, ±5%, regulated, 50mA max
MICRO203
Thermocouple and RTD
PT100, 165 µA
Documents to download
Document's type
User Guide - MICRO200 all models - MICRO200.pdf
1.85 Mo
3D mockup - Universal Display - MICRO200.STEP
57.13 Ko
Technical specifications
Product category
Display
Display
-199999 to +199999, depending on available signal level
Power supply
85-250Vac, 50/60Hz
11 to 36Vdc
Sensor's power supply
5 Vdc with 65mA max, ±2% or 10Vdc with 125mA ±2%
Input signal
2 ranges : ±24mV or ±240mV
Analogue output
0-20mA, 4-20mA or 0-10Vdc
0-20mA, 4-20mA or 0-10Vdc
Operating temperature range
0 to +50°C
Documents to download
Document's type
User Guide - MICRO200 all models - MICRO200.pdf
1.85 Mo
3D mockup - Universal Display - MICRO200.STEP
57.13 Ko
Technical specifications
Product category
Display
Display
-199999 to +199999, depending on available signal level
Power supply
85-250Vac, 50/60Hz
11 to 36Vdc
Sensor's power supply
24Vdc, ±5%, regulated, 50mA max
Input signal
20mA (-2 to +26mA) and 10Vdc (-1 to +13Vdc)
Analogue output
0-20mA, 4-20mA or 0-10Vdc
0-20mA, 4-20mA or 0-10Vdc
Operating temperature range
0 to +50°C
Documents to download
Document's type
User Guide - MICRO200 all models - MICRO200.pdf
1.85 Mo
3D mockup - Universal Display - MICRO200.STEP
57.13 Ko
Technical specifications
Product category
Display
Display
-199999 to +199999, depending on available signal level
Power supply
85-250Vac, 50/60Hz
11 to 36Vdc
Sensor's power supply
PT100, 165 µA
Input signal
Thermocouple and RTD
Analogue output
0-20mA, 4-20mA or 0-10Vdc
0-20mA, 4-20mA or 0-10Vdc
Operating temperature range
0 to +50°C
