B037
Cyclic pressure test Bench

The cyclic pressure test bench is designed forTest Departments wishing to qualify endurance parts for water distribution networks
  • Particularly suitable for large-diameter plastic pipelines
  • Test capacity for large parts with high expansion (up to 2200cm3) up to 64 bar
The cyclic pressure test bench is designed forTest Departments wishing to qualify endurance parts for water distribution networks. It is particularly adapted to large diameter pipes, whether rigid or deformable.

Solutions:

See all our solutions

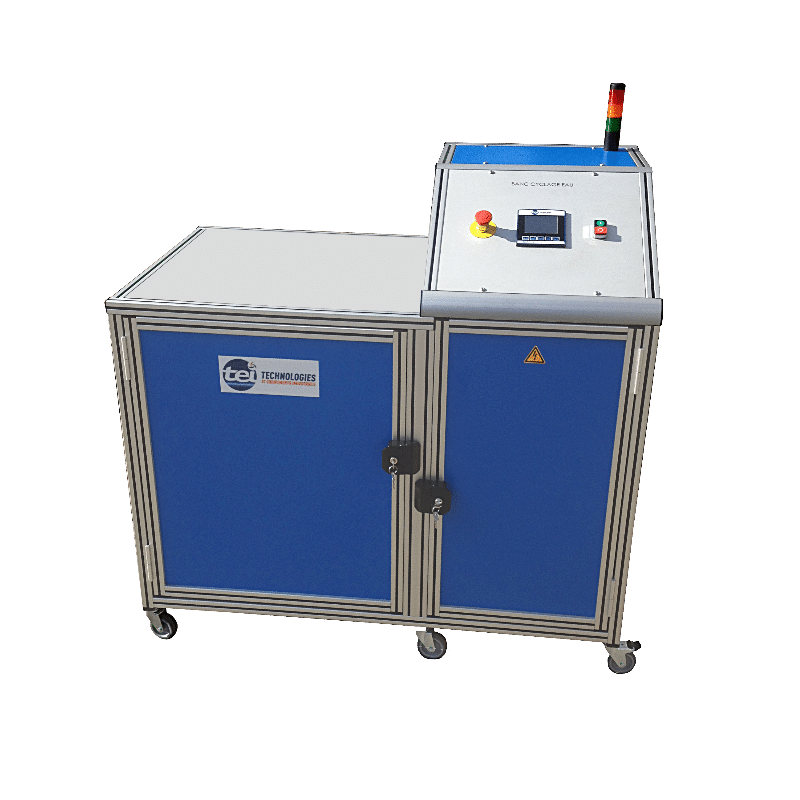

Pictures of the product

Model

Documents to download
Document's type
Datasheet - Cyclic pressure test Bench - B037.pdf
190.43 Ko
Technical specifications
Product category
Cycling
Applications
R&D Test
Features
Test capacity for large parts with high expansion (up to 2200cm3) up to 64 bar
Particularly suitable for large-diameter plastic pipelines
Technical Specifications
Closed-loop hydraulic circuit (no water consumption during cycling)
Water supply: City water network 2 to 4 bar - connection to manual valve BSPP1/2''
Automatic filling of tested equipment
Power supply: 230V 50Hz 16A - 5m cable with standard plug type E
Maximum permissible expansion of the tested piece: 2200 cm3 (more: contact us)
Test fluid: city water (oil: consult us)
Cycling: Parameterizable trapezoidal signal: HP/LP (bar); ramp (bar/sec); H/L steps (sec), number of cycles
Option: Expansion measurement of the test piece
Performance: regulation of 0...64bar G ± 250mbarG / max. speed: 12 bar/sec
Automatic control by PLC with integrated HMI - remote access to test results via MODBUS with supplied software (other protocol: contact us)
Pneumatic supply: Compressed air at 6/8 bar - piping DN6 - connection to About RBE06
