B050
10Hz Cyclic pressure test bench

The 10Hz Cyclic Pressure Test Bench is designed for laboratories and Test Departments In order to perform an extended endurance test (up to 10 million cycles) with cyclic pressure at high frequency on several pieces of equipment (housings, valves,piping, etc
  • User-friendly control software with real-time curveplotting
  • Test parameters: 0.5 to 5bar at 10Hz max
  • Automatic cycling of several parts simultaneously upto 10 million cycles
The 10Hz Cyclic Pressure Test Bench is designed for laboratories and Test Departments In order to perform an extended endurance test (up to 10 million cycles) with cyclic pressure at high frequency on several pieces of equipment (housings, valves,piping, etc.) at the same time

Solutions:

See all our solutions

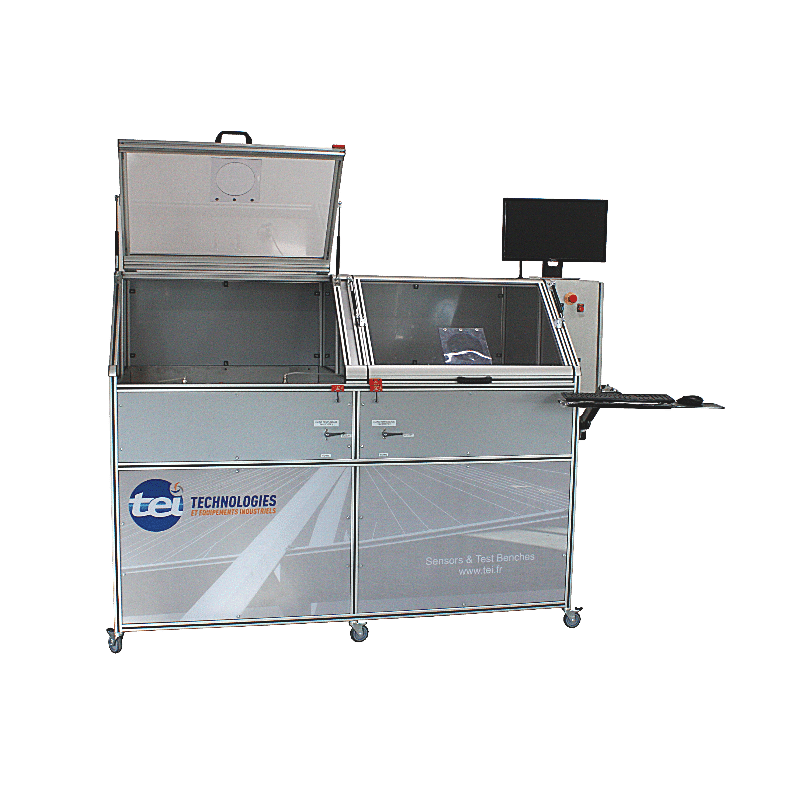

Pictures of the product

Model

Documents to download
Document's type
Datasheet - 10Hz Cyclic pressure test bench - B050.pdf
311.8 Ko
Technical specifications
Product category
Cycling
Applications
R&D Test
Features
Automatic cycling of several parts simultaneously upto 10 million cycles
Test parameters: 0.5 to 5bar at 10Hz max
User-friendly control software with real-time curveplotting
Technical Specifications
Test constraints: rigid test pieces - volume less than or equal to 4L
Water supply: City water network 2 to 4 bar - BSPP3/8'' connection on the bench
Cycling: Sinusoidal curve - frequency configurable from 0.5 to 10Hz up to 10 million cycles (other curves : contact us)
Software control with parameterization of test by operator, regulation of the cyclic pressure, plotting of the pressure curves (with template) and rec
Pressure regulation: adjustable pressure from 0.5 ... 5barG - tolerance: ±50mbar
Pressure measurement: 4 measuring channels 0-10 barG ± 20mbar with high dynamics (1kHz - 3dB)
Dimensions (W x H x D): 2200 x 1550 x 800 mm
Test capacity: 2 independent test stations which can test up to 2 pieces at a time
Power supply: 230V 50Hz 16A - connection on IEC base plate)
Test fluid: water (air: contact us)
Pneumatic supply: Compressed air 8 to 10bar - connection BSPP1/2'' on the bench
