T.E.I
B075

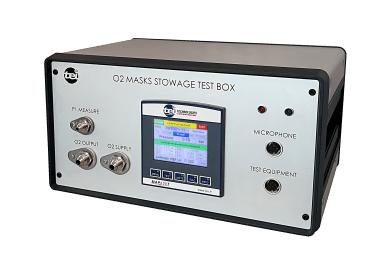

Oxygen Mask Stowage Test Box
The Stowage Oxygen Mask Test Case is designed for workshops wishing to extend the existing test capabilities of their Oxygen Stations by enabling them to test the MXP800/600 Series (CMM 35-13-44) & MXP300S Series (CMM 35-13-82) Flight Crew mask Stowage
- Plug & Play pressure sensor
- Configurable circuit for different tests
- Automatic leak test
- Compatible with the B001 Universal Oxygen Bench
- Scalable test capability with integrated database
The Stowage Oxygen Mask Test Case is designed for workshops wishing to extend the existing test capabilities of their Oxygen Stations by enabling them to test the MXP800/600 Series (CMM 35-13-44) & MXP300S Series (CMM 35-13-82) Flight Crew mask Stowage.
Solutions:
Pictures of the product
Model
Documents to download
Document's type
Technical specifications
Product category
Oxygen Equipment
Applications
MRO - Maintenance Repair and Overhaul
Features
Automatic leak test
Configurable circuit for different tests
Plug & Play pressure sensor
Scalable test capability with integrated database
Compatible with the B001 Universal Oxygen Bench
Technical Specifications
Pressure measurement chain: Measurement range: 0-16barG, Accuracy: < 0.1% EM, Output signal: digital (CANOPEN bus)
Oxygen Supply :Oxygen circuit adjustable from 0 to 10barG (0 to 145PSIG), flow capacity: 180 NLPM@7bar, fluid: gaseous oxygen, JIC 37) Dash 6 (9/16 x
Power supply: Network 200-240VAC ±10%; 50/60Hz - 15A, Connection to type E mains socket
Mask Stowage Electrical Port: connection to the "TEST EQUIPMENT" connector on the B075 box using a connection cable specific to each PN
Mask Stowage Outlet Port: Fitted with a "Union Tee Outlet" connector equivalent to PNR 422097, to connect to the sensor and external accessory flowmet
Mask stowage inlet port: Connection to the "O2 SUPPLY" and "P1 MEASURE" ports on the B075 box, fitted with a "Tee Union Fitting" equivalent to PNR 422
